China Telescopic Hydraulic Cylinder (Suitable for Lightweight self-Unloading Models) Factory and Manufacturer

Product Detail

Product Tags

In terms of quality assurance, Linqing Dingtai Machinery Co., Ltd. has passed the ISO 9001 quality system certification in 2003 and the ISO/TS16949 international quality system certification in 2013. The company has also been honored with the title of "China's Quality Integrity AAA Class Brand Enterprise."

Adhering to the principles of quality, technology, management, and service, Linqing Dingtai Machinery Co., Ltd. is committed to enhancing its market share and customer satisfaction through continuous innovation and improvement.

Company Introduction

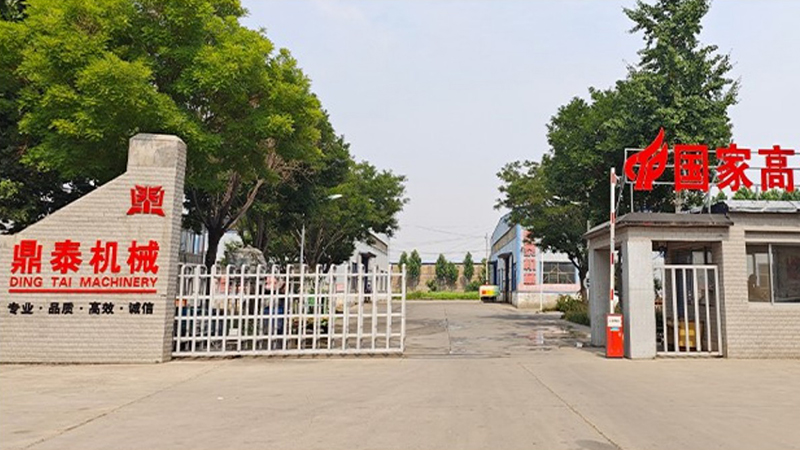

Linqing Dingtai Machinery Co., Ltd. is a specialized hydraulic machinery manufacturer established in 2002. The company is located at the north end of the East Outer Ring Road in Linqing City, just 1 kilometer south of the highway toll station, offering convenient transportation access.

The company is dedicated to the design, research and development, and manufacturing of hydraulic machinery products, with a particular focus on specialized vehicle hydraulic cylinder assemblies and hydraulic system products. Covering an area of over 100 acres, the company is equipped with 150 sets of advanced machinery, including deep hole boring equipment, cold drawing production lines, testing equipment, CNC machining centers, cylindrical grinding machines, centerless grinding machines, and welding production lines.

Basic Information:

Hydraulic Cylinder（Suitable for Lightweight self-Unloading Models）：

Model	Stroke（mm）	Rated Pressure (Mpa)	H(mm)	B（mm）	C（mm）	D（mm）
3TG-E118*2850ZZ	2850	20	343	280	180	60

Key attributes

Industry-specific attributes

Structure	Series Cylinder
Power	Hydraulic

Other attributes

Weight （kg）	Approx：100
Core components	PLC
Video outgoing-inspection	Provided
Machinery test report	Provided
Standard or nons-tandard	Standard
Place of origin	Shandong, China
Brand name	DTJX
Color	Red or balck or as your require
Certificate	lSO9001f16949;NAQ
Tube	27#simi,45#

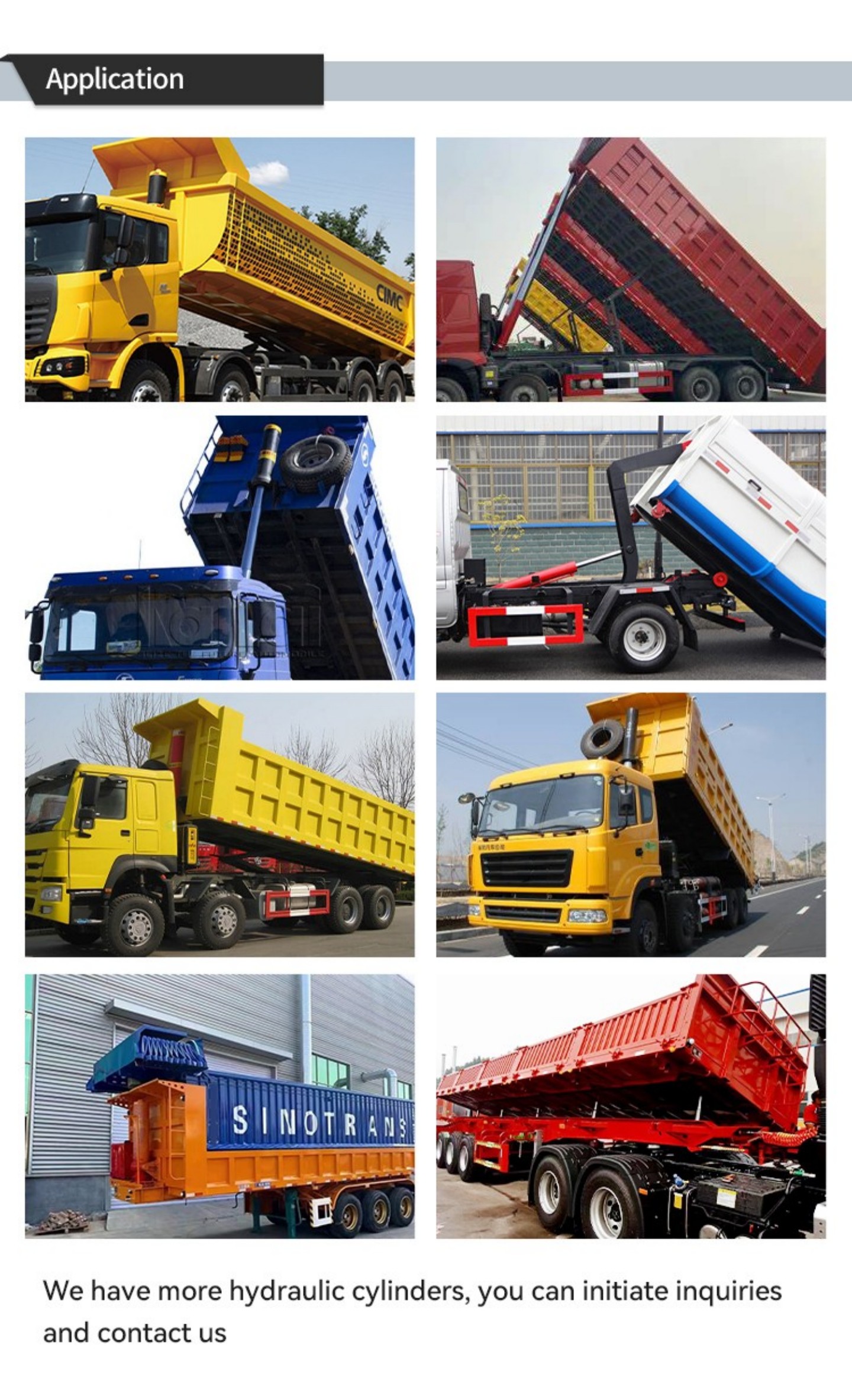

Application	Dump truck,crane,Tilting platform...
Sealing and rings	Imported

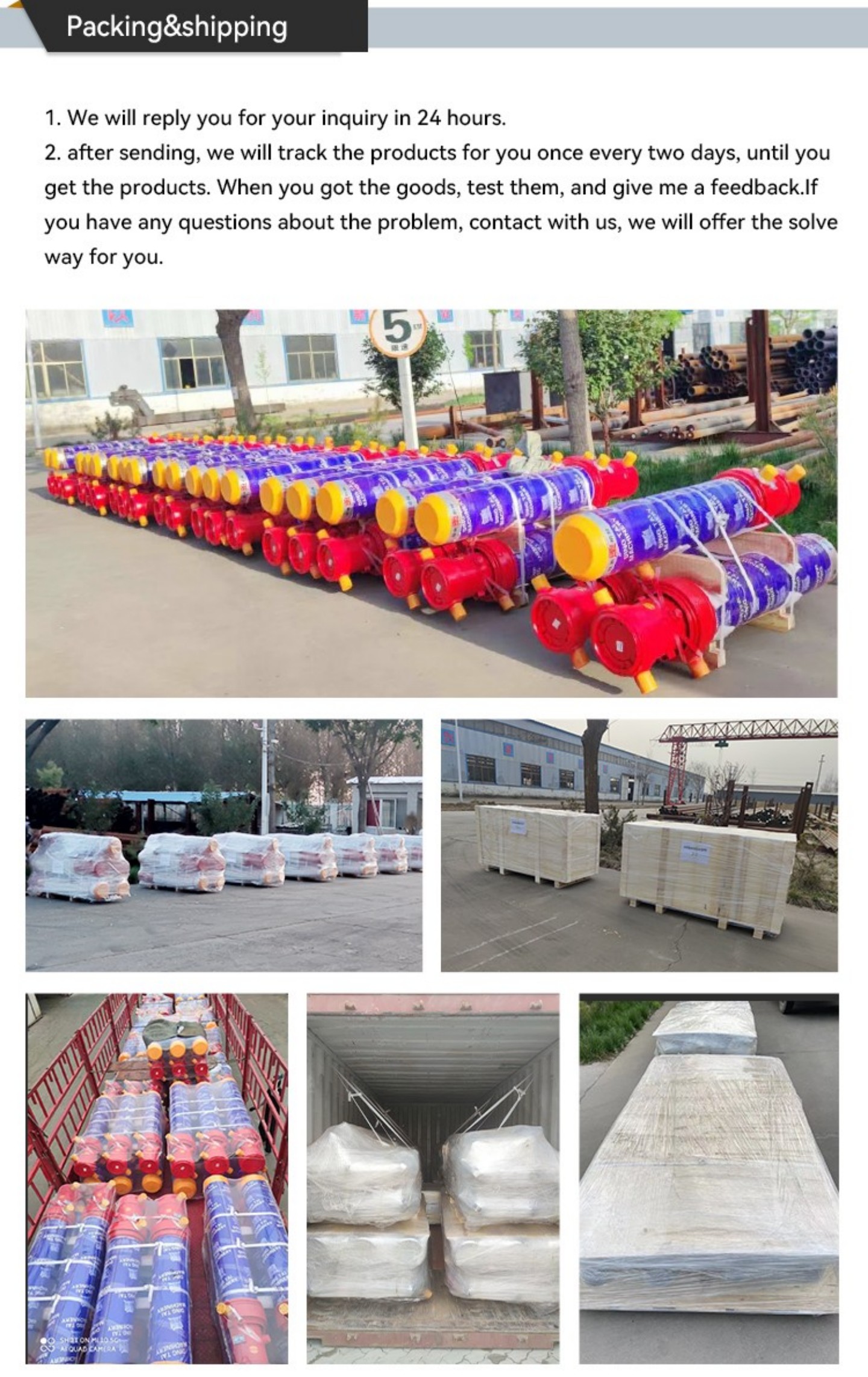

Package	Plastic or woodcase
Material	Seamless steel
MOQ	1

Product Details

Dingtai hydraulic cylinder adopts excellent sealing technology and new material applications, which can withstand the worst working conditions and adapt to a temperature range of -40°C to 110°C. It operates continuously and stably in both high and low temperature environments, ensuring the safety of drivers and vehicles.

☑ 1.High-Quality Material: Utilizes high-quality 27SiMn regulated steel pipe, which offers high tensile strength, high yield strength, and strong load-bearing capacity.

☑ 2.Advanced Manufacturing: Patented technology design and advanced production processes are employed to ensure the stability and consistency of product quality.

☑ 3.Superior Sealing: Features imported oil seals with excellent sealing performance, minimizing leakage risks.

☑ 4.Special Design: Lightweight construction with fast lifting and lowering speeds, enhancing operational efficiency.

☑ 5.Surface Treatment: The surface is chrome-plated to increase surface and hardness prolong service life.

Our Services

With over two decades of experience, we specialize in supplying custom hydraulic cylinders based on provided drawings or samples. If you can provide the following specifications, we can tailor our products to meet your exact requirements:

☑ 1.Cylinder Dimensions: Stroke length, bore diameter, and rod diameter.

☑ 2.Operating Pressure: Maximum and minimum working pressure.

☑ 3.Temperature Range: Specific temperature requirements if outside the standard -40°C to 110°C range.

☑ 4.Mounting Options: Preferred mounting styles (e.g., flange, clevis, etc.).

☑ 5.Seal Requirements: Any specific seal materials or types required.

☑ 6.Additional Features: Any special features or customizations needed (e.g., coatings, sensors, etc.).

FAQ

Q1: How is the quality?

A1: We adopt patented technology structure design and advanced production process,and have passed the lATF16949:2016 quality control system and lS09001 to ensure stable product quality.

Q2: What are the advantages of your oil cylinder?

A2: The oil cylinder is manufactured using advanced equipment and processed through strict quality control.The steel has undergone tempering treatment, and all raw mate-rials are from world-renowned companies with superior quality.Competitive prices!

Q3: When was your company established?

A3: Our company was established in 2002, specializing in the production of hydraulic cylinders for over 20 years.

Q4: What is the delivery time?

A4: About 30 days.

Q5: What is the quality assurance of hydraulic cylinders?

A5: One year.
